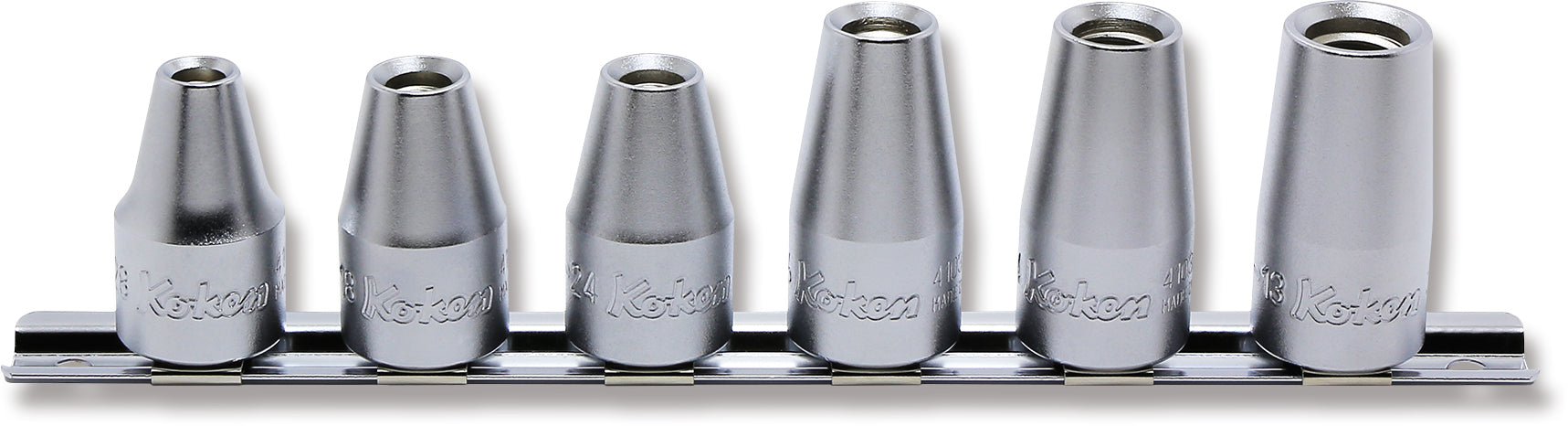

1/2” DRIVE SAE, STUD SETTER SET
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
| Input Drive Size: |
1/2" |
| Drive Shape: |
Square |
| Length: |
200mm Rail |
| Type: |
Stud Bolt Setter Set |
| Output Sizes: |
1/4(28), 5/16(18) ,5/16(24), 3/8(16), 7/16(14), 1/2(13) |
Includes:
| SKU
|
DESCRIPTION |
LENGTH |
| 4103A-1/4(28) |
1/2 Sq. Dr. Stud Bolt Setter 1/4 X 28UNF |
37mm |
| 4103A-5/16(18) |
1/2 Sq. Dr. Stud Bolt Setter 5/16 X 18UNC |
37mm |
| 4103A-5/16(24) |
1/2 Sq. Dr. Stud Bolt Setter 5/16 X 24UNF |
37mm |
| 4103A-3/8(16) |
1/2 Sq. Dr. Stud Bolt Setter 3/8 X 16UNC |
44mm |
| 4103A-7/16(14) |
1/2 Sq. Dr. Stud Bolt Setter 7/16 X 14UNC |
44mm |
| 4103A-1/2(13) |
1/2 Sq. Dr. Stud Bolt Setter 1/2 X 13UNC |
44mm |
