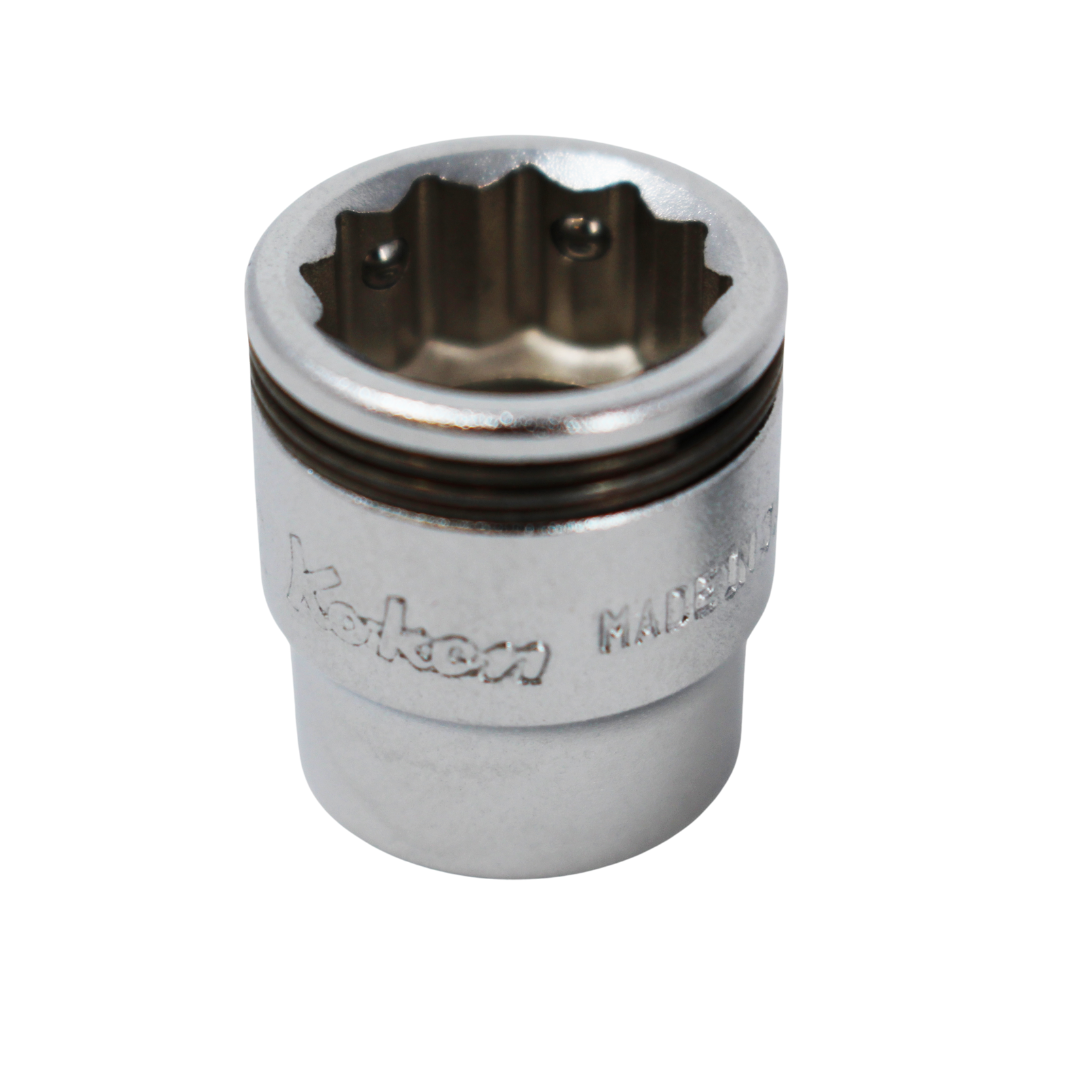

Nut Grip, 1/4” drive, Short, 12 Point. NUT GRIP® is Ko-ken's special design for non-magnetic nuts/bolts to be held firmly in 6-point sockets and now 12-point sockets. The 12-point design consists of three balls held in place by a spring steel ring.
| Type |
Short Nut Grip Socket |
| Drive Size |
1/4"
|
| Drive Type |
Square |
| Output Size |
11/32" |
| Output Type |
12-Point |

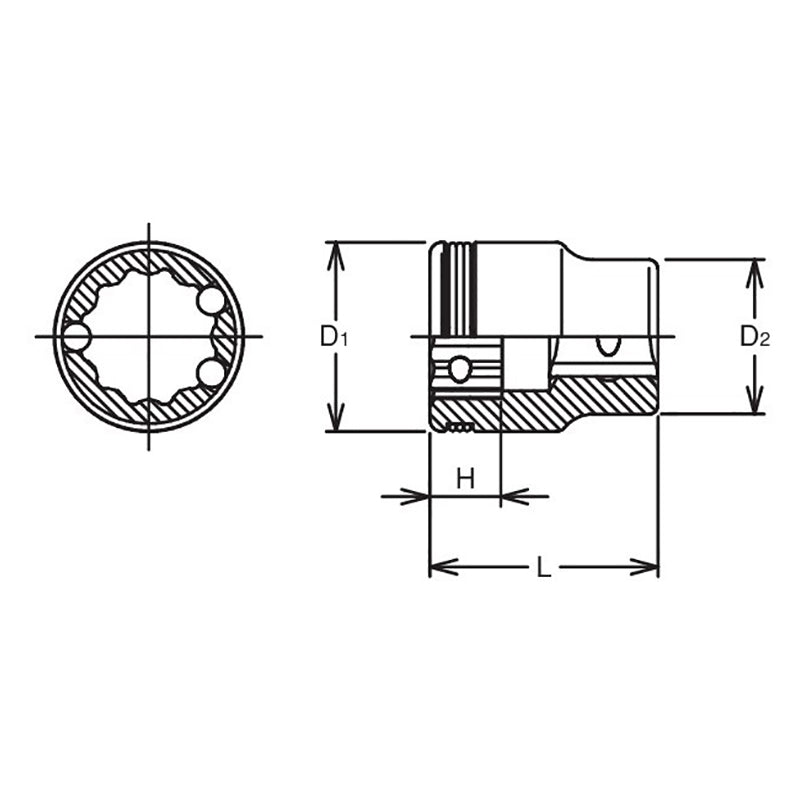

Product Dimension (Refer Line Drawing Image):
| D1 Size: |
14.1mm |
| D2 Size: |
14.1mm |
| H Size: |
5.5mm |
| L Size: |
19mm |
