1/2” DRIVE, STUD SETTER
The Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
|
Input Drive Size:
|
1/2" |
|
Drive Shape:
|
Square |
|
Length:
|
37mm |
|
Type:
|
Stud Bolt Setter |
|
Output Size:
|
8mm x 1.25mm
|

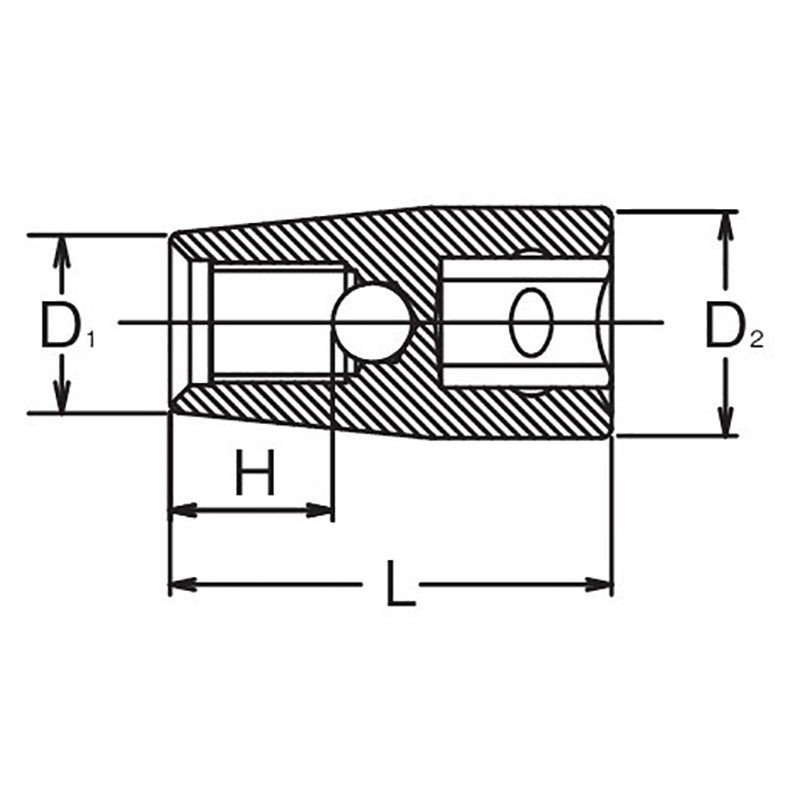

Product Dimension (Refer Line Drawing Image):
|
D1 Size:
|
13.2mm |
|
D2 Size:
|
22mm |
|
H Size:
|
11mm |
|
L Size:
|
37mm |
