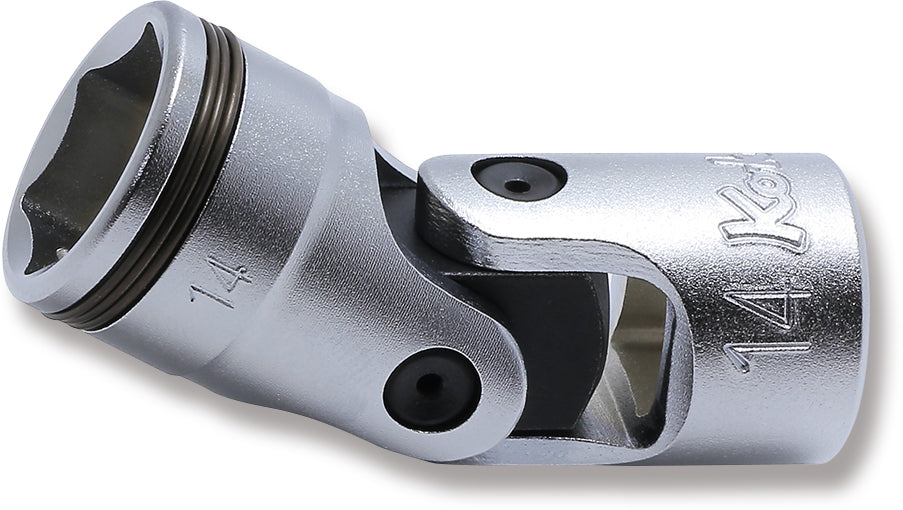

Nut Grip, 3/8” drive, Standard Length, Chrome Hand Sockets.
NUT GRIP® is Ko-ken's special design for non-magnetic nuts/bolts to be held firmly in a 6-point socket. The design consists of two balls held in place by a spring steel ring.
Our nut grip sockets are unique to Ko-ken and truly a revolutionary way of approaching this type of socket. Our fastener holds nuts and bolts in place without the use of magnets. Our system is built with a coil spring and ball bearings on opposing flats. When a nut or bolt is in the socket the ball bearings push out on the springs holding the nut/bolt in place.
|
Input Drive Size:
|
3/8" |
|
Drive Shape:
|
Square |
|
Length:
|
49.5mm |
|
Type:
|
Nut Grip Universal Socket |
|
Output Size:
|
14mm |
|
Opening:
|
Nut Grip |

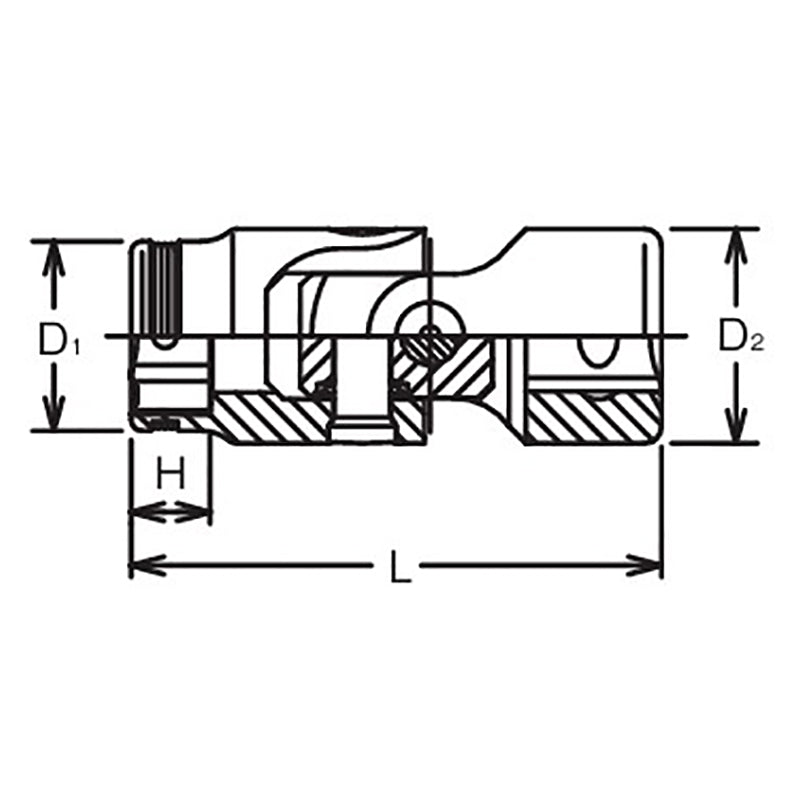

Product Dimension (Refer Line Drawing Image):
|
D1 Size:
|
19.5mm |
|
D2 Size:
|
19mm |
|
H Size:
|
8.5mm |
|
L Size:
|
49.5mm |
