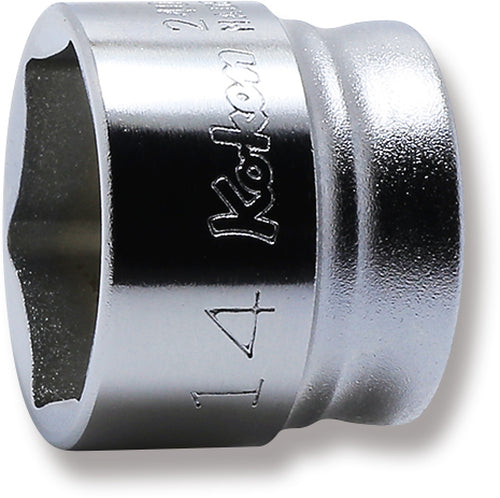

Metric, ¼” drive, 6 Point, Standard Length, Chrome Hand Sockets.
A six-point socket is designed to contact the head of a fastener well away from the corners so contact is made on the thickest part of the fastener. the edges of a socket are angled back a few degrees to allow the socket to slide easily over a fastener.
|
Input Drive Size:
|
1/4" |
|
Drive Shape:
|
Square |
|
length:
|
15mm |
|
Type:
|
6 Point Socket |
|
Output Size:
|
14mm |
|
Opening:
|
6pt |

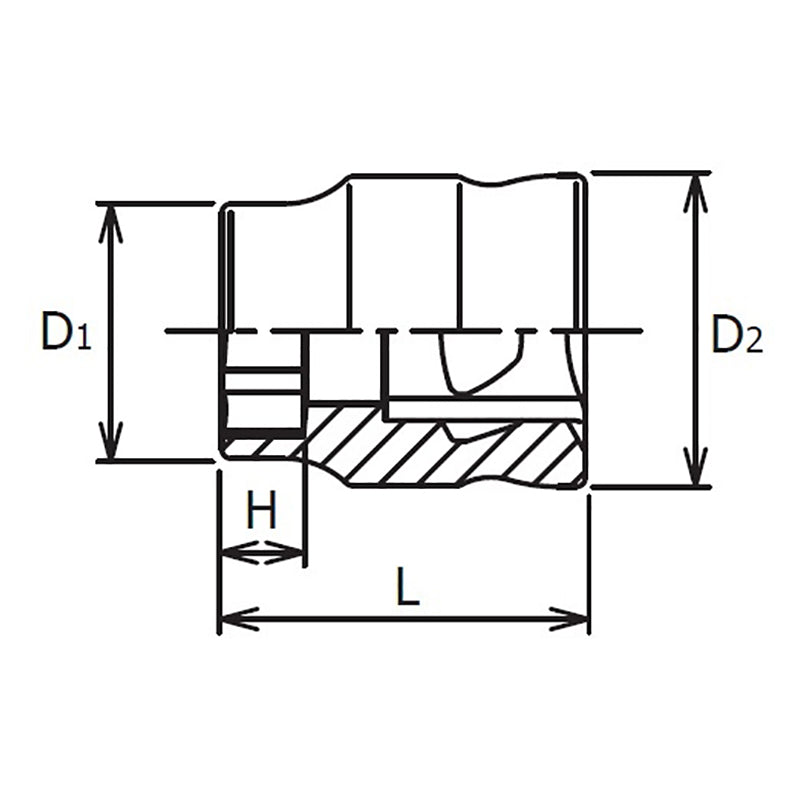

Product Dimension (Refer Line Drawing Image):
|
D1 Size:
|
18.3mm |
|
D2 Size:
|
16.8mm |
|
H Size:
|
7mm |
|
L Size:
|
15mm |
